Automatic PU Foam Sandwich Wall Panel Making Machine 32KW

Brand Name : ZC

Model Number : ZC-LD24M

Certification : CE/ISO

Place of Origin : china

MOQ : 1

Price : Negotiation

Payment Terms : TT or LC

Delivery Time : on condition

Packaging Details : wood

Product name : pu sandwich panel line

Production speed(m/min) : (Adjustable)3-8

Total size(Length×Width×Height) : 130000×15000×6000

Core Components : forming machine

Advantage : waterproof, Fire resistance,lightness

Inner material : EPS, Rock Wood

Roller material : Carbon steel 45#

Blade Material : Blade Material:

Contact Now

auto sandwich panel production line/pu foam sandwich wall panel making machine

Feed width	1000mm/1200mm
Component	Discharge rack, tile press, composite main engine, cutting part, drag rack
Outline size	45000mm3000mm2800mm
Motor power	32KW
Production line speed	0-4 m/min
Machine weight	About 12-14T
Electric control system	PLC adopts touch screen, inverter adopts Delta, encoder adopts Xinya.
Pressing thickness	0.3-0.8mm
Power Supply	AC380V/50-60HZ
Discharge rack	It is composed of support and discharging coil core, bearing 5-7t
Tile press	Forming 13 rows of shafts. Shaft: φ 70. Middle plate: 12mm. Frame: 250h steel. Chain wheel and chain: 6 points
Compound host	Square tube: 80 * 160
Host length	6 m
Total equipment	35 m


Main Features:

Panel from the continuous sandwich panel production line is a composite structure consisting of two external facings and an insulating core. The core can be flexible with Polyurethane, Mineral Wool, Glass Wool, PIR, Phenolic or EPS. Various profiles are available according to customer's requirement with pre-painted steel sheets, PVC sheets, Aluminum paper or other similar supports.
The continuous sandwich panel production line has a large scale production capacity. It allows a uniform distribution of the reactive mixture, a homogeneous density, suitable physical and mechanical characteristics.

Roof panels, wall panels and door panels are mainly made of metal section support and polyurethane insulating mass.
The capacity of the continuous line is 3-7m/min, length of the production line is 100m, the size of the final panel is 3-18m long, 900-1200mm wide, 20-150mm thick, the valid length of double belt conveyor is 24m, the total power is 300kw.

Automatic PU Foam Sandwich Wall Panel Making Machine 32KW

Product Tags:

32KW Sandwich Wall Panel Making Machine

Sandwich Wall PU Panel Machine

Automatic Polyurethane Sandwich Panel Line

China Automatic PU Foam Sandwich Wall Panel Making Machine 32KW factory

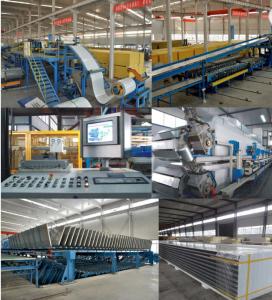

Automatic PU Foam Sandwich Wall Panel Making Machine 32KW Images
